Fender Rhodes 4-Pin External Power Supply
Fender Rhodes 4-Pin External Power Supply
Vintage Vibe external power supplies will allow one to utilize the active electronics of a Rhodes Peterson preamplifier without the use of the suitcase cabinet.
Share this Product
Product Details
Description
Whats Included
Instructions
Description
This power supply will allow you to use the preamplifier found in a Fender Rhodes or early Rhodes suitcase model piano without the suitcase amplifier cabinet or modifying the piano. Enjoy your piano and all of its tone shaping controls anywhere you go!

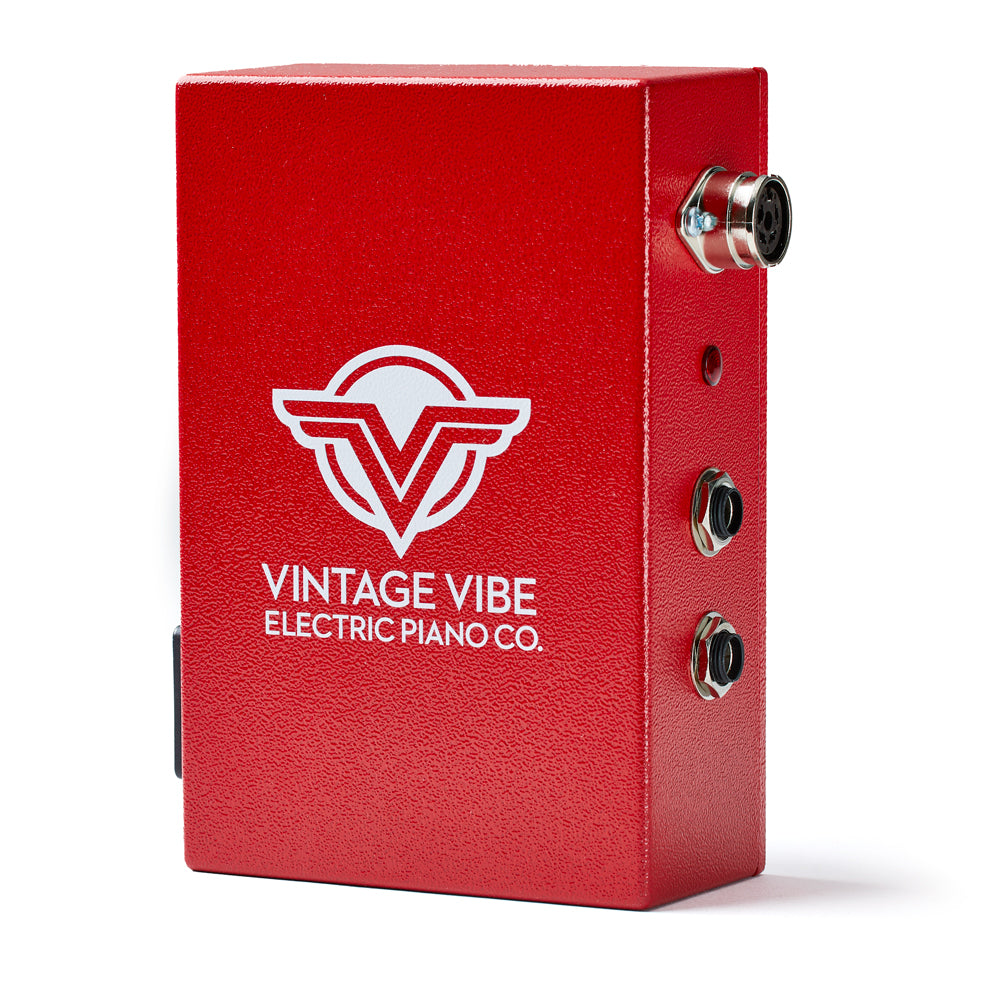

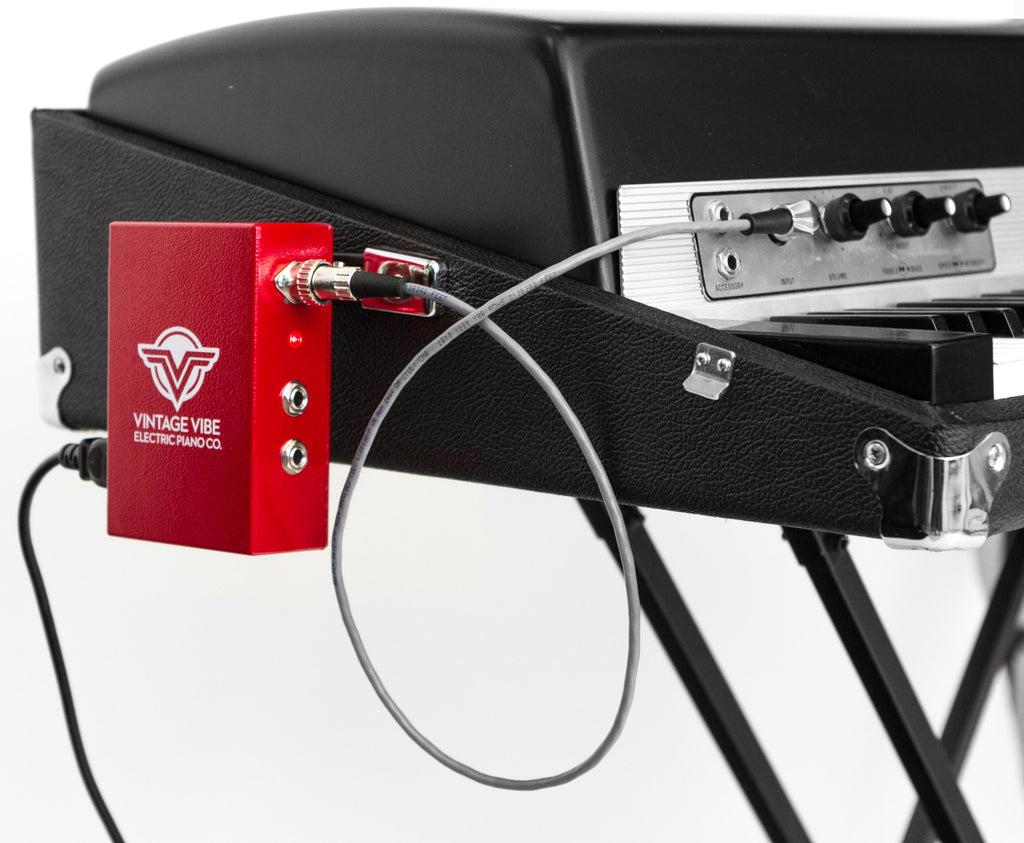

The power supply is small in footprint and includes a mounting clip to hang from your piano's side handle. Left and right 1/4" output jacks are located on the front panel along with an LED power indicator and 4 pin DIN socket for interfacing with the preamplifier. The rear panel features a standard IEC inlet and fuse holder. On tour? No problem, our supply will function with input voltages from 100-240VAC.
NOTE
• Compatible with Fender Rhodes and early Rhodes suitcase models equipped with Peterson preamplifiers and 4 Pin DIN sockets.
• This will not work with later 5 pin versions (see here for 5-Pin External Power Supplies).
• The required 4 pin cable must have round DIN connectors on each end and is not included but may be purchased here.
• You will need to plug the power supply into a wall outlet using the standard C13 IEC cable for your region (not included). IEC Cables for North America may be purchased here.
• Hanging clip color may vary from color shown
Whats Included
- Silkscreened / Powdercoated Enclosure
- 4 Pin Female DIN socket
- 1/4" Switchcraft Left and Right Output Jacks
- Power Indicator LED
- C14 IEC Inlet / Fuse Holder & 1A Slo Blo Fuse
Instructions
- Connect the piano's preamplifier to the power supply utilizing a 4-Pin Suitcase Cable with round DIN connectors on each end.
- Plug the power supply into a wall outlet supplying between 100-240VAC with with the standard C13 IEC cable for your region.
- Use standard 1/4" instrument cables to connect one or both of of the outputs to amplifiers, a PA or mixing console.
